>Trade Name: Raven RP118Si - Butt Hinged Door Seal
> Product Features
- Raven RP118Si seal.
- A smoke, weather and acoustic door frame seal ideal for use on outward opening butt hinged doors.
- Suitable panic exit device at the head of the door.
- Quick and easy to install.
TO ORDER & SPECIFY
01329 844 500
sales@astrodraft.com
Search For Your Raven Model
For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).
> Product Description
A smoke, weather and acoustic door frame seal suitable for outward opening butt hinged doors. Designed to accommodate a latch engagement for suitable panic exit devices at the head of the door. The RP118Si used in conjunction with the RP117Si threshold plate seal provides a bulkhead seal around the door with a top and bottom latch engagement. Quick and easy to install with a mitre joint without removing the door, the RP118Si is slotted for adjustment and has concealed fixings.

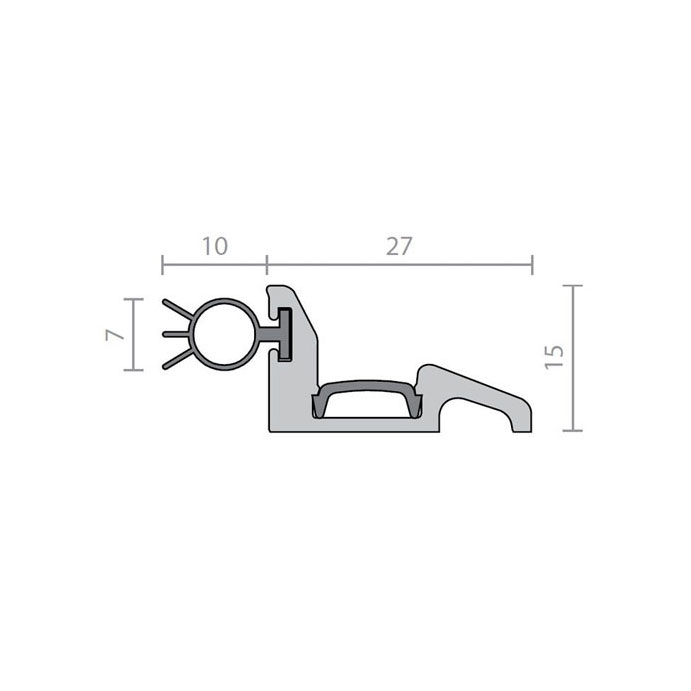

> Product Information
- Location: Head and jambs of single and double butt hinged doors.
- Min/Max Gap: 0mm to 10mm.
- Finish: Aluminium anodised 15 microns. Satin Clear (Silver) finish.
- Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
- Seal: RP308Si. Grey silicon rubber (SE).
- Sizes: Available in 1000 and 2000mm stock lengths.
> Product Availability
| Product Code | Description | Colour | Size |
| ADRP118Si/1000 | Raven RP118Si - Butt Hinged Door Seal | Aluminium anodised | 1000mm |
| ADRP118Si/2000 | Raven RP118Si - Butt Hinged Door Seal | Aluminium anodised | 2000mm |
> To Order & Specify
For all Enquiries about this product please contact us: Please quote - Quantity | Trade name | Product Ref | Colour | Size
Typical wording - 10 | Raven RP118Si - Butt Hinged Door Seal | ADRP118Si/1000 | Aluminium anodised | 1000mm
>> Tel: 01329 844 500 or >> Email: sales@astrodraft.com
> Installation
For further information on installation requirements please see the installation sheet or contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
> Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
> Delivery/Returns
For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday). All dates quoted for despatch are estimates only and are not guaranteed. We will endeavour to meet these dates but shall have no liability for any delay in despatch or delivery or any damage or loss occasioned thereby. We may deliver products pursuant to any order by instalments. If we are unable to deliver the goods for any reason,you will be contacted and you will not be obliged to pay for the goods which have not been delivered, you also have the option to cancel the goods that have been delivered, however we shall not be liable for any loss of income or profit which may have been caused by the delay or non delivery of goods.
For information about our returns policy please click here.
> Ask a Question
If you've got a question about this product or need some technical help get in touch with the Astrodraft sales or technical team to discuss your requirements today. We are open Monday to Friday 8:00am to 5:30pm. You can always contact us on the following:
