>Trade Name: Raven RP65 - Magnetic Seal
> Product Features
- A magnetic refrigeration type strip.
- For hardwood doors to make an astragal type seal.
TO ORDER & SPECIFY
01329 844 500
sales@astrodraft.com
Search For Your Raven Model
For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).
> Product Description
A refrigeration type vinyl magnetic strip in an anodised aluminium channel which is morticed into the stiles of pivot, sliding or butt hinged double doors, to form an effective astragal. The magnetic strip is locked in place to prevent creeping and has sufficient strength that latches may not be required (centre latching can not be used). Can be used in conjunction with Raven door bottom and perimeter seals. Note: RP65 is best suited to infrequent use and door closer hold open applications.
> Product Information
- Location: Meeting stiles of double swinging and sliding timber doors.
- Min/Max Gap: 5mm to 7mm. (Swing doors).
- Finish: Satin clear (silver) anodised aluminium (15μm).

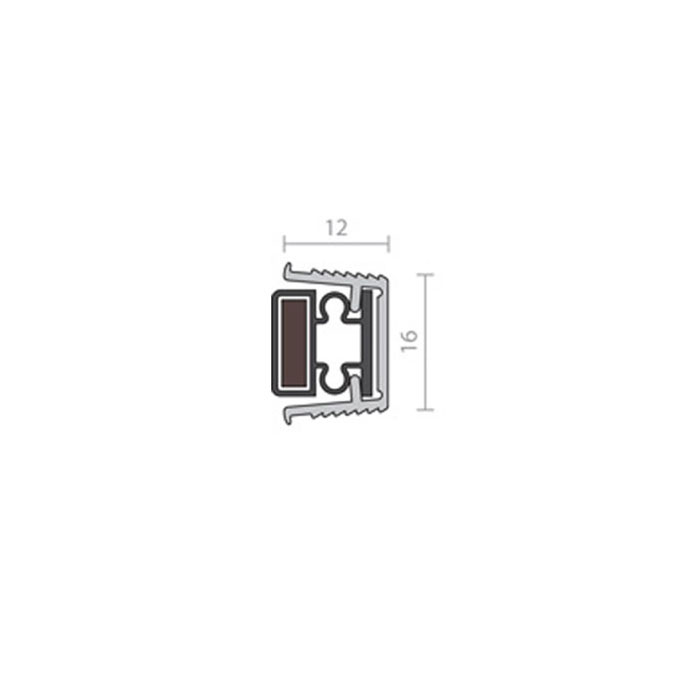

- Fixing: Push-in locking fit into a 16.5mm x 12mm deep groove and optional adhesive. Minimum door thickness of 40mm required.
- Seal: Black PVC with magnetic strip.
- Sizes: Available in 2250mm stock lengths.
> Product Availability
| Product Code | Description | Colour | Size |
| ADRP65 | Raven RP65 - Magnetic Seal | Black | 2250mm |
> To Order & Specify
For all Enquiries about this product please contact us: Please quote - Quantity | Trade name | Product Ref | Colour | Size
Typical wording - 10 | Raven RP65 - Magnetic Seal | ADRP65 | Black | 2250mm
>> Tel: 01329 844 500 or >> Email: sales@astrodraft.com
> Installation
For further information on installation requirements please see the installation sheet or contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
> Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
