>Trade Name: Raven RP77 - Heavy Duty Ramp Style Plate
> Product Features

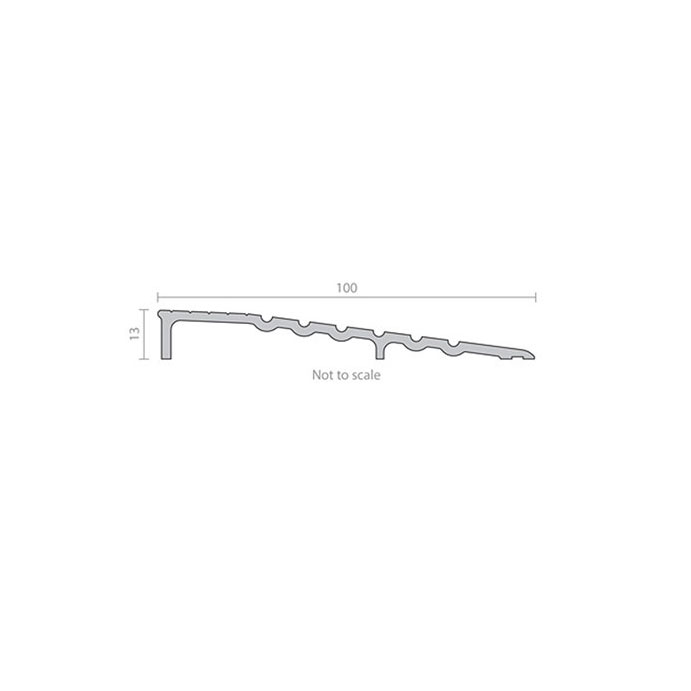

- Heavy Duty Threshold Plate - 100mm.
- Conforms to UK/EU Approved Document M.
- Conforms to Approved Document B (BS 476 Pt. 20 & 22).
- The ribbed extrusions can be positioned back to back to provide a two way threshold ramp.
TO ORDER & SPECIFY
01329 844 500
sales@astrodraft.com
Search For Your Raven Model
For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).
> Product Description
A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b). Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots. Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways. Can also be used to provide a ramped frame for internal door mats. For a threshold ramp plate with a longer slope see the Raven RP98 model.
> Product Information
- Location: Door sill.
- Finish: Aluminium anodised 25 microns. Satin Clear (Silver).
- Fixing: Zinc plated, cross recess head CSK S.T. screws of the appropriate size and colour are supplied.
- Sizes: 1000mm and 2250mm stock lengths.
> Product Availability
| Product Code | Description | Colour | Size |
| ADRP77/1000 | Raven RP77 - Heavy Duty Ramp Style Plate | Satin Clear (Silver) | 1000mm |
| ADRP77/2250 | Raven RP77 - Heavy Duty Ramp Style Plate | Satin Clear (Silver) | 2250mm |
> To Order & Specify
For all Enquiries about this product please contact us: Please quote - Quantity | Trade name | Product Ref | Colour | Size
Typical wording - 10 | Raven RP77 - Heavy Duty Ramp Style Plate | ADRP77/1000 | Satin Clear (Silver) | 1000mm
>> Tel: 01329 844 500 or >> Email: sales@astrodraft.com
> Installation
For further information on installation requirements please see the installation sheet or contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
> Health and Safety
The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
