>Trade Name: Raven RP79 / RP88 - Glass Door Seals

> Product Features

Glass Door Weather seal.
Glass door draught excluder strips.
Uses an Anodised Aluminium (15 microns) carrier.

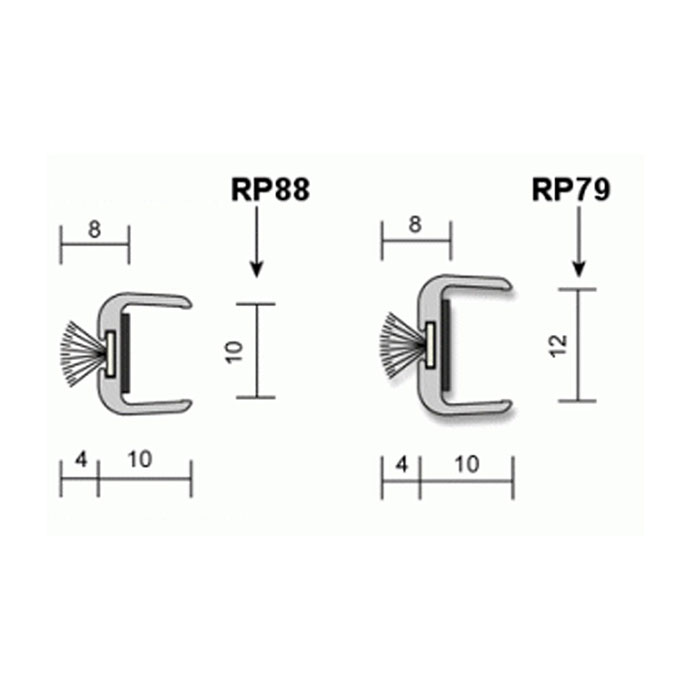

The Raven RP88 seal is for 10mm thick glass doors.
The Raven RP79 seal is for 12mm thick glass doors.

TO ORDER & SPECIFY

Search For Your Raven Model

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

> Product Description

Aluminium astragal seals designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal. Both types, RP79 and RP88, are for pre-installation gaps of 8mm to 9mm and sold in 3 metre lengths. Fixing is with double sided adhesive tape (pre-fitted in the carrier). Contact surfaces must be clean, smooth and, if painted, well cured. Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates. To seal the bottom of the door we suggest the Raven RP74 or RP75 Self Adhesive Brush Seals.

> Product Information

Location: Meeting stiles of 12mm thick frameless glass doors.
Min/Max Gap: 8mm to 9mm (prior to installation).
Finish: Satin clear (silver) anodised aluminium (15μm).
Fixing: Self adhesive.
Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
Seal: Black polypropylene pile with felt weather fins.
Sizes: 12mm or 10mm thick glass - 3000 mm.

> Product Availability

Product Code	Description	Colour	Size
ADRP88/10	Raven RP79 / RP88 - Glass Door Seals	Aluminium anodised	10mm thick glass - 10 x 3000mm (RP88)
ADRP79/12	Raven RP79 / RP88 - Glass Door Seals	Aluminium anodised	12mm thick glass - 12 x 3000mm (RP79)

> To Order & Specify

>> Tel: 01329 844 500 or >> Email: sales@astrodraft.com

> Installation

For further information on installation requirements please see the installation sheet or contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com

> Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com

> Delivery/Returns

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday). All dates quoted for despatch are estimates only and are not guaranteed. We will endeavour to meet these dates but shall have no liability for any delay in despatch or delivery or any damage or loss occasioned thereby. We may deliver products pursuant to any order by instalments. If we are unable to deliver the goods for any reason,you will be contacted and you will not be obliged to pay for the goods which have not been delivered, you also have the option to cancel the goods that have been delivered, however we shall not be liable for any loss of income or profit which may have been caused by the delay or non delivery of goods.

For information about our returns policy please click here.

> Ask a Question

If you've got a question about this product or need some technical help get in touch with the Astrodraft sales or technical team to discuss your requirements today. We are open Monday to Friday 8:00am to 5:30pm. You can always contact us on the following:

T: 01329 844 500

E: sales@astrodraft.com
