>Trade Name: Raven RP92Si - Automatic Seal

> Product Features

Raven RP92si A heavy duty, adjustable, automatic door bottom seal.
Ideal for butt hinged doors with large gaps.
The RP92Si can accommodate ramped floors/sills with gradients up to 1:8.

TO ORDER & SPECIFY

Search For Your Raven Model

For in-stock items orders received before 2pm (Monday-Friday) are generally dispatched for delivery on the following working day (Monday-Friday).

> Product Description

A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Ideal for butt hinged doors with large gaps such as where internal access ramps are used and large clearances are necessary. The RP92Si can accommodate ramped floors/sills with gradients up to 1:8 and utilises an aesthetic extruded aluminium cover for concealed fixing.

> Product Information

Location: Face mounted on the bottom of timber or metal single and double butt hinged doors.

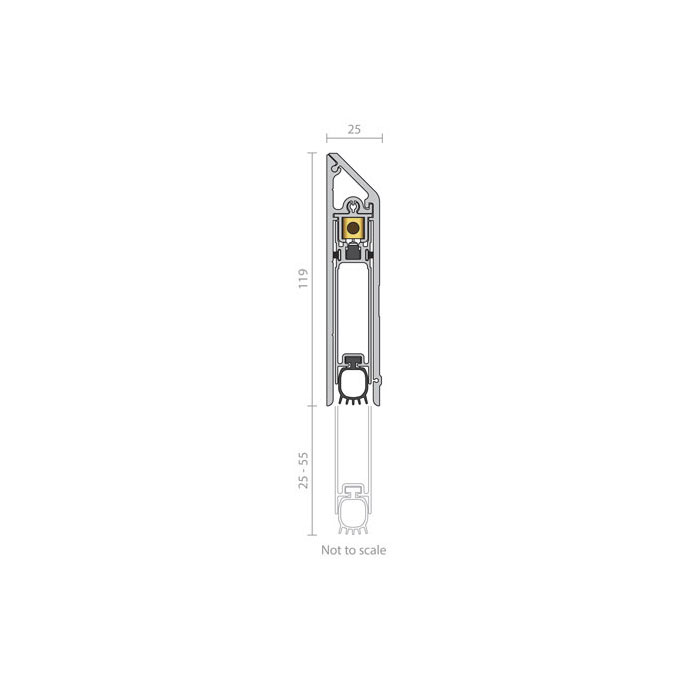

Min/Max Gap: 25mm to 55mm. Larger gaps can be accommodated if set lower on the door bottom and smaller gaps if set higher on the door bottom (user determined).
Finish: Satin clear (silver) anodised aluminium (15µm) with black anodised inner.
Fixing: Concealed screw fix. Adhesive striker plate,escutcheon plates and zinc plated, cross recess head S.T. screws supplied.
Seal: RP347Si. Black Silicon Rubber (SE).
Sizes: 820mm, 920mm, 1070mm, 1200mm.

> Product Availability

Product Code	Description	Colour	Size
ADRP92Si/820	Raven RP92Si - Automatic Seal	Satin clear (silver) anodised aluminium	820mm
ADRP92Si/920	Raven RP92Si - Automatic Seal	Satin clear (silver) anodised aluminium	920mm
ADRP92Si/1070	Raven RP92Si - Automatic Seal	Satin clear (silver) anodised aluminium	1070mm
ADRP92Si/1220	Raven RP92Si - Automatic Seal	Satin clear (silver) anodised aluminium	1220mm

> To Order & Specify

>> Tel: 01329 844 500 or >> Email: sales@astrodraft.com

> Installation

For further information on installation requirements please see the installation sheet or contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com

> Health and Safety

The product does not present any known health hazards during or after installation. Normal good industrial and personal hygiene practices should be observed. For further information on health and safety requirements please contact the technical team on: tel 01329 844 500 or email sales@astrodraft.com
